Stainless Steel IT Enclosures
- Brand:
- GOODE
- Material:
- stainless steel
- Surface treatment:
- Brushed
- Color:
- Original Color
- Installation method:
- Floor-standing
- Certification:
- ISO9001 , CE
- Protection degree:
- IP65
- Against mechanical impacts:
- IK09
- Working Voltage:
- 110V , 220V , 380V
- Customize:
- Available, OEM , ODM
About this item

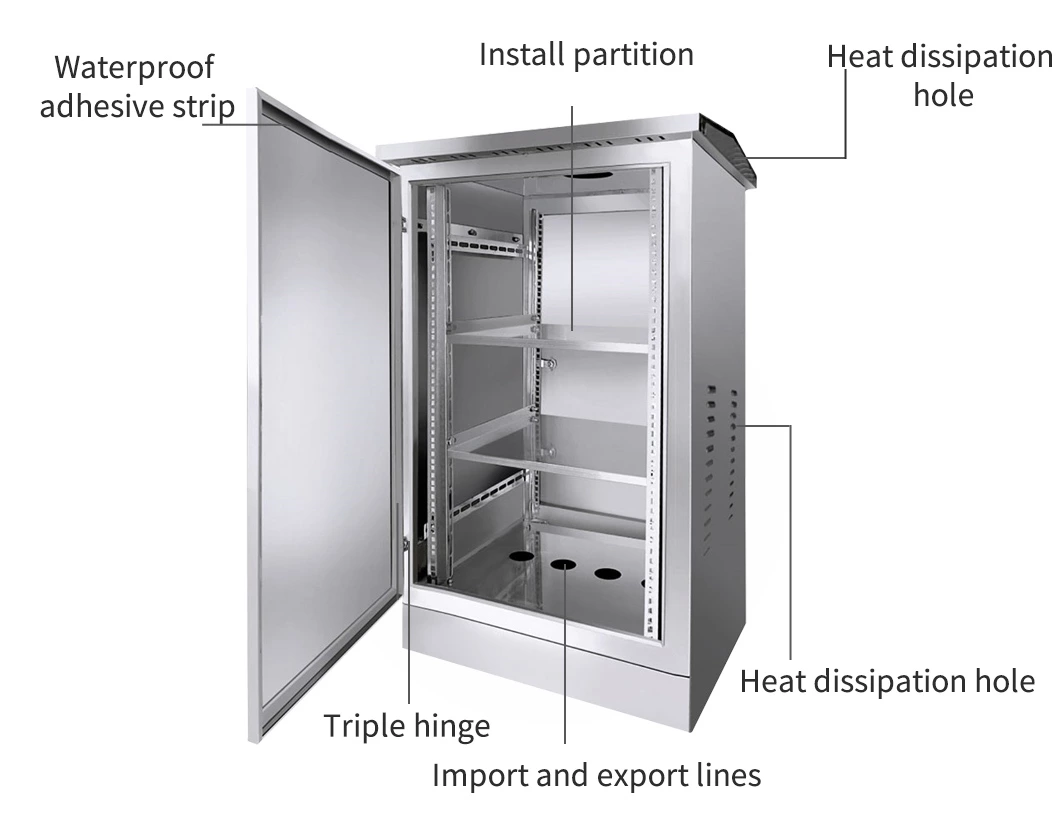

● Outdoor Stainless Steel Network Cabinet (19-inch) is constructed by bending and welding premium SUS304 stainless steel plates.
● It features dual front and rear doors, a double-sloped top design, louvered air vents on both sides, and fan openings on the top (air-cooled heat dissipation design). The interior is equipped with adjustable shelves.
● The door panels incorporate PU sealing strips cast in one go by a casting machine, preventing dust and rainwater infiltration. The cabinet base is provided with cable outlets, and the doors open over 110 degrees with smooth rotation.
● Widely used in ports, terminals, road traffic, chemical plants, and other locations requiring high waterproof and anti-corrosion performance, it facilitates network cabling and centralized data management for data rooms.
| Order number | Width | Height | Depth | Base |
| GD-NES608050 | 600 | 800 | 500 | 100 |
| GD-NES6010050 | 600 | 1000 | 500 | 100 |
| GD-NES6012050 | 600 | 1200 | 500 | 100 |
| GD-NES6014050 | 600 | 1400 | 500 | 100 |
| GD-NES6016050 | 600 | 1600 | 500 | 100 |
| GD-NES6018050 | 600 | 1800 | 500 | 100 |
| GD-NES6020050 | 600 | 2000 | 500 | 100 |
