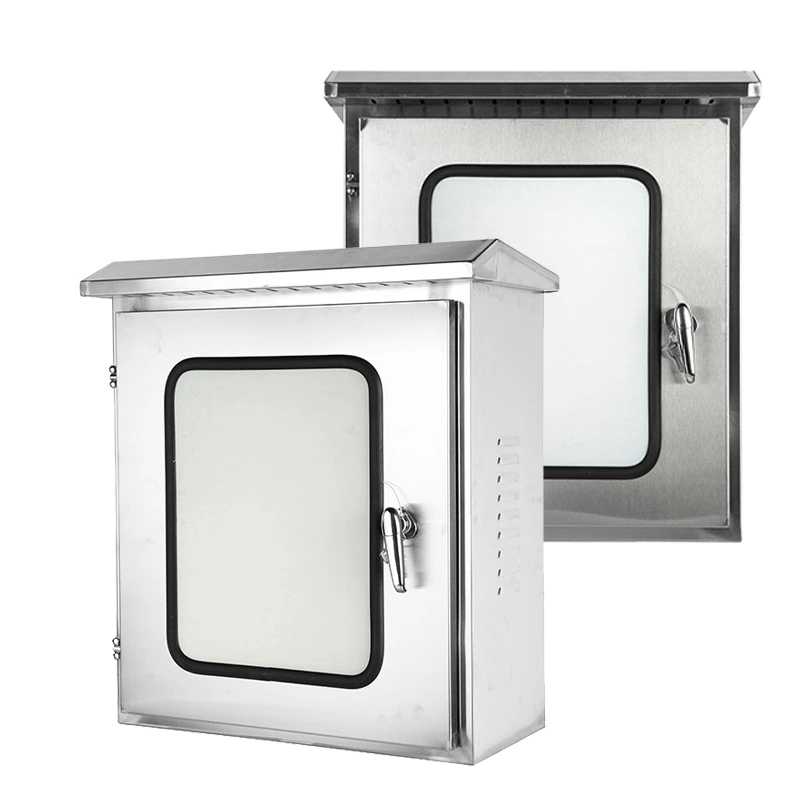

Stainless Steel Distribution Box Outer Door
- Brand:
- GOODE
- Material:
- stainless steel
- Surface treatment:
- Brushed
- Color:
- Original Color
- Installation method:
- Wall-mounted
- Certification:
- ISO9001 , CE
- Protection degree:
- IP65
- Against mechanical impacts:
- IK09
- Working Voltage:
- 110V , 220V , 380V
- Customize:
- Available, OEM , ODM
About this item
● Stainless Steel Distribution Box with Inner-Outer Door is constructed by bending and welding SUS304 stainless steel plates, featuring an inner door design and a double-sloped top. The interior is equipped with a mounting panel,
● The door panel incorporates a PU sealing strip cast in one go by a casting machine. The box base is provided with cable outlets, and the door opens over 110 degrees with smooth rotation. It offers corrosion resistance, dust prevention, and rain protection.
● Widely used in transportation, residential areas, schools, hospitals, factories, shopping malls, and other locations, it provides power supply and centralized management for monitoring equipment, 5G base stations, and data forwarding points.
| Order number | Width | Height | Depth |
| GD-WPD304020 | 300 | 400 | 200 |
| GD-WPD304025 | 300 | 400 | 250 |
| GD-WPD405020 | 400 | 500 | 200 |
| GD-WPD405025 | 400 | 500 | 250 |
| GD-WPD405030 | 400 | 500 | 300 |
| GD-WPD406020 | 400 | 600 | 200 |
| GD-WPD406025 | 400 | 600 | 250 |
| GD-WPD406030 | 400 | 600 | 300 |
| GD-WPD506020 | 500 | 600 | 200 |
| GD-WPD506025 | 500 | 600 | 250 |
| GD-WPD506030 | 500 | 600 | 300 |
| GD-WPD507020 | 500 | 700 | 200 |
| GD-WPD507025 | 500 | 700 | 250 |
| GD-WPD507030 | 500 | 700 | 300 |
| GD-WPD608020 | 600 | 800 | 200 |
| GD-WPD608025 | 600 | 800 | 250 |
| GD-WPD608030 | 600 | 800 | 300 |
