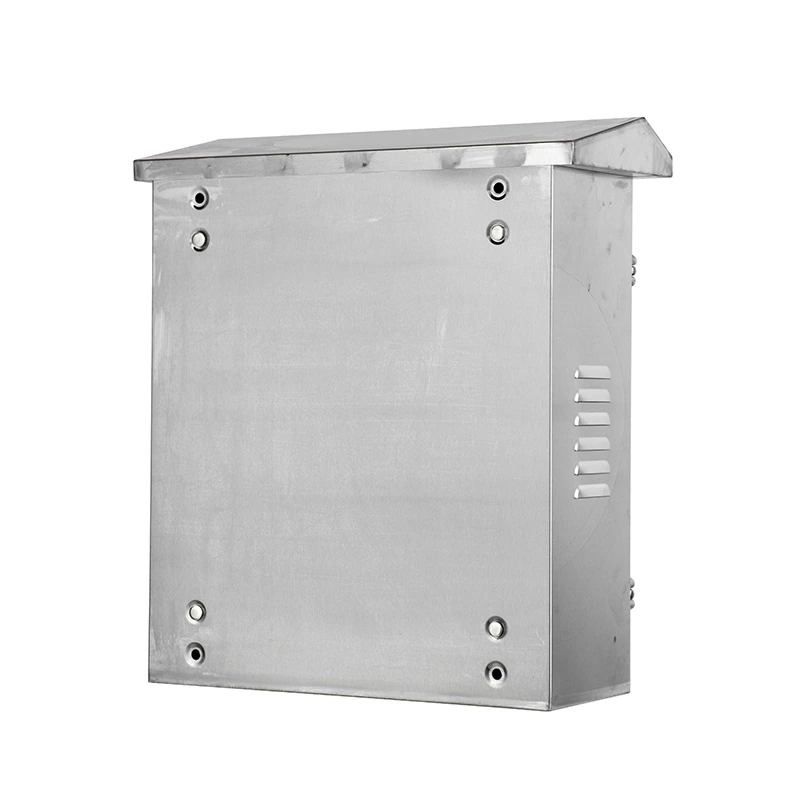

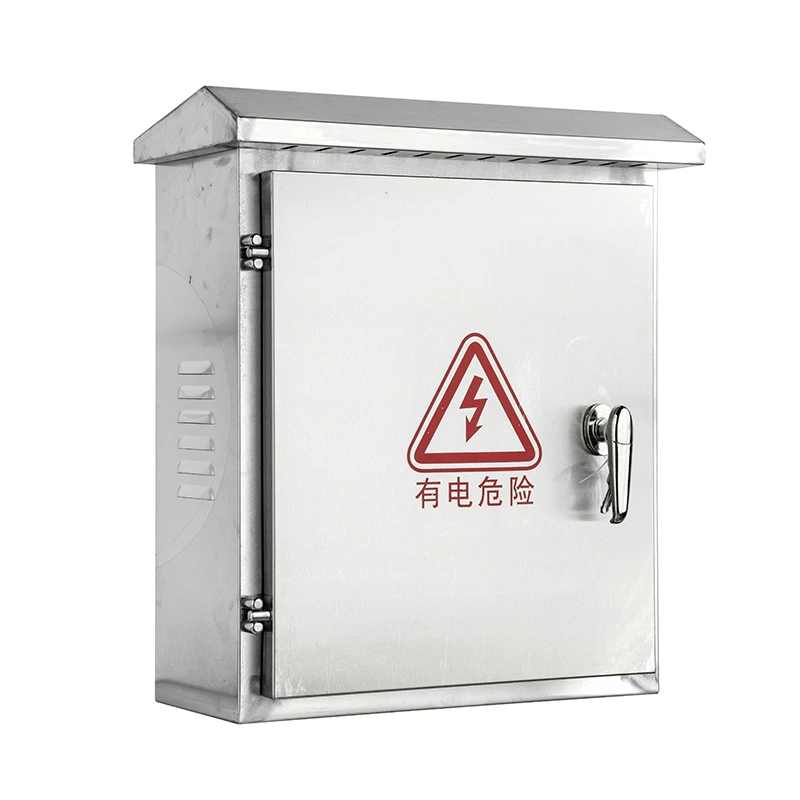

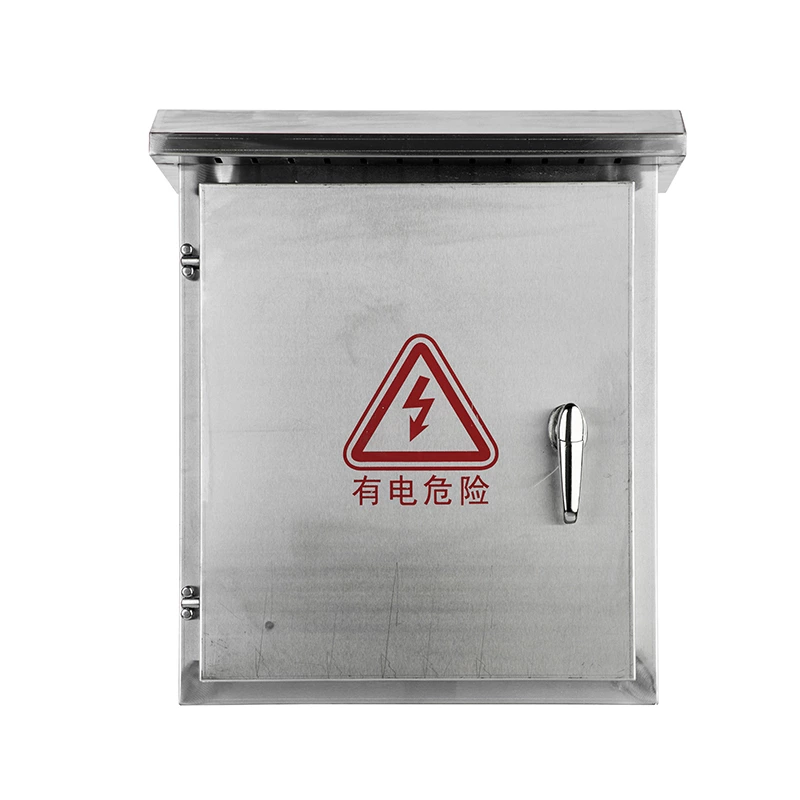

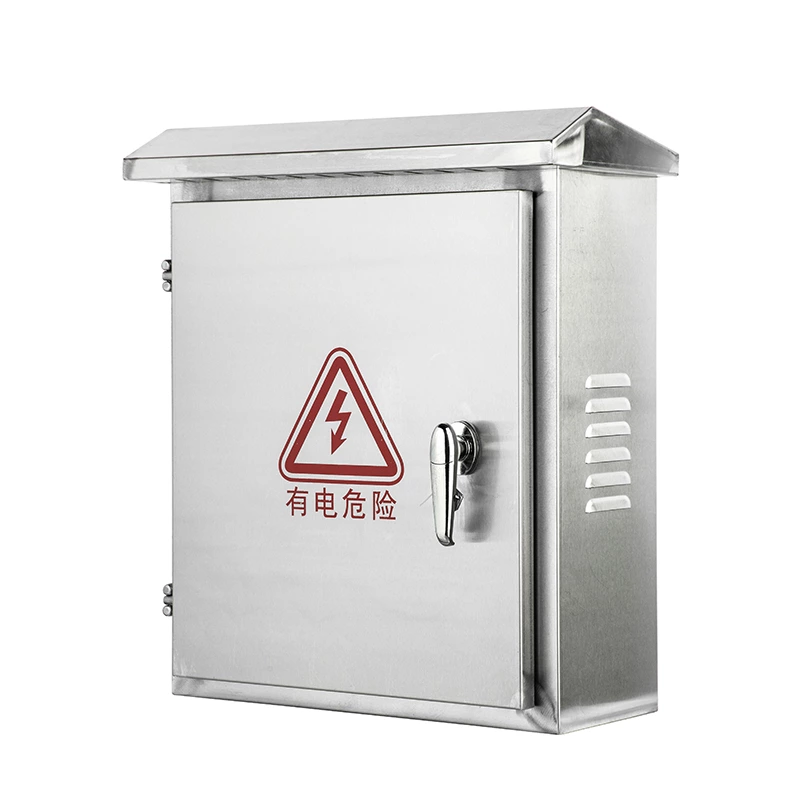

Outdoor Weatherproof Stainless Steel Enclosure Cabinet Box
- Brand:
- GOODE
- Material:
- stainless steel
- Surface treatment:
- Brushed
- Color:
- Original Color
- Installation method:
- Wall-mounted
- Certification:
- ISO9001 , CE
- Protection degree:
- IP65
- Against mechanical impacts:
- IK09
- Working Voltage:
- 110V , 220V , 380V
- Customize:
- Available, OEM , ODM
About this item
● Stainless Steel Distribution Box is constructed by bending and welding SUS304 stainless steel plates.
● Featuring a double-sloped top design.

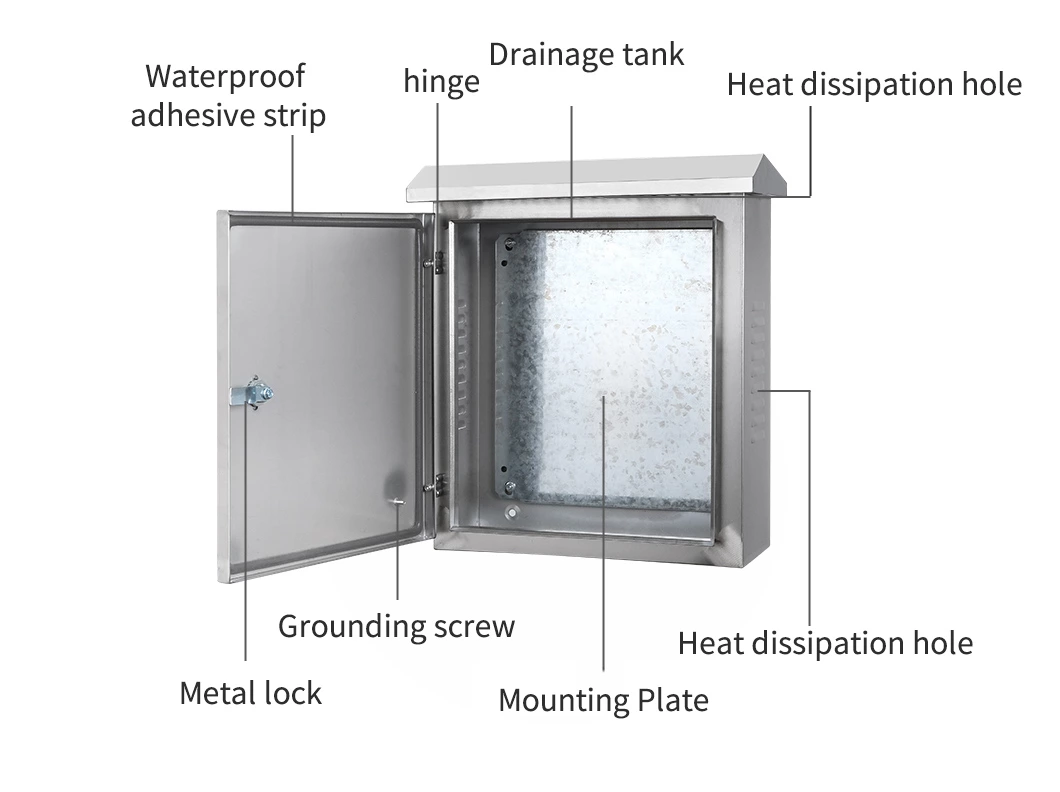

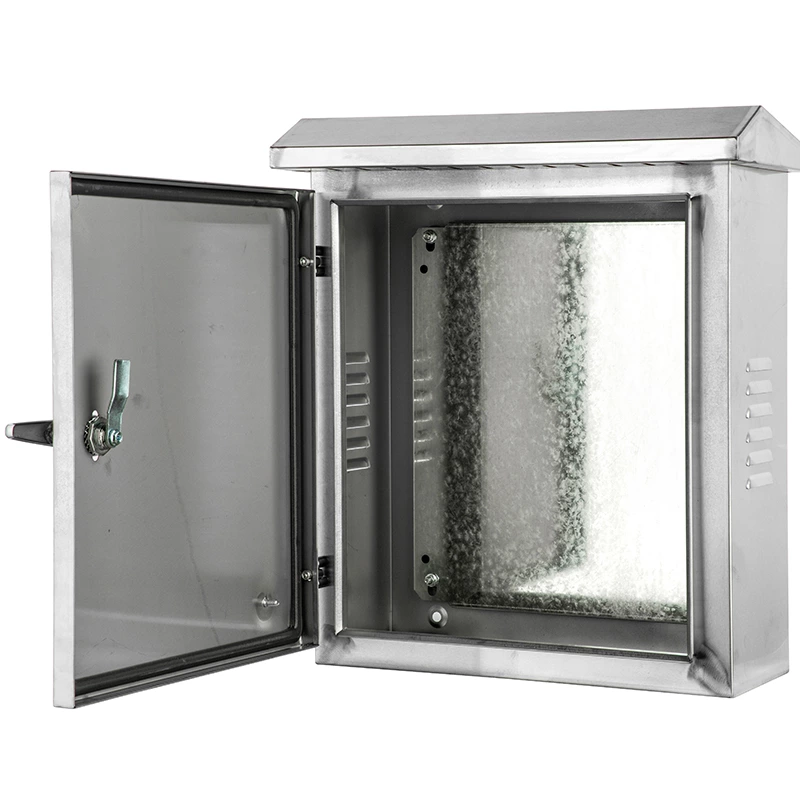

● The interior is equipped with a mounting panel, while the door panel incorporates a PU sealing strip cast in one go by a casting machine. The box base is provided with cable outlet(s),
● The door opens over 110 degrees with smooth rotation. It offers corrosion resistance, dust prevention, and rain protection.
| Order number | Width | Height | Depth |
| GD-WP253016 | 250 | 300 | 160 |
| GD-WP304017 | 300 | 400 | 170 |
| GD-WP304020 | 300 | 400 | 200 |
| GD-WP304025 | 300 | 400 | 250 |
| GD-WP305030 | 300 | 500 | 300 |
| GD-WP405020 | 400 | 500 | 200 |
| GD-WP405025 | 400 | 500 | 250 |
| GD-WP405030 | 400 | 500 | 300 |
| GD-WP406020 | 400 | 600 | 200 |
| GD-WP406025 | 400 | 600 | 250 |
| GD-WP406030 | 400 | 600 | 300 |
| GD-WP506018 | 500 | 600 | 180 |
| GD-WP506020 | 500 | 600 | 200 |
| GD-WP506025 | 500 | 600 | 250 |
| GD-WP506030 | 500 | 600 | 300 |
| GD-WP507020 | 500 | 700 | 200 |
| GD-WP507025 | 500 | 700 | 250 |
| GD-WP507030 | 500 | 700 | 300 |
| GD-WP508020 | 500 | 800 | 200 |
| GD-WP508025 | 500 | 800 | 250 |
| GD-WP606020 | 600 | 600 | 200 |
| GD-WP606025 | 600 | 600 | 250 |
| GD-WP607020 | 600 | 700 | 200 |
| GD-WP607025 | 600 | 700 | 250 |
| GD-WP607030 | 600 | 700 | 300 |
| GD-WP608020 | 600 | 800 | 200 |
| GD-WP608025 | 600 | 800 | 250 |
| GD-WP608030 | 600 | 800 | 300 |
| GD-WP609020 | 600 | 900 | 200 |
| GD-WP609025 | 600 | 900 | 250 |
| GD-WP609030 | 600 | 900 | 300 |
| GD-WP6010020 | 600 | 1000 | 200 |
| GD-WP6010025 | 600 | 1000 | 250 |
| GD-WP6010030 | 600 | 1000 | 300 |
| GD-WP7010020 | 700 | 1000 | 200 |
| GD-WP7010025 | 700 | 1000 | 250 |
| GD-WP7010030 | 700 | 1000 | 300 |
| GD-WP8010020 | 800 | 1000 | 200 |
| GD-WP8010025 | 800 | 1000 | 250 |
| GD-WP8010030 | 800 | 1000 | 300 |
