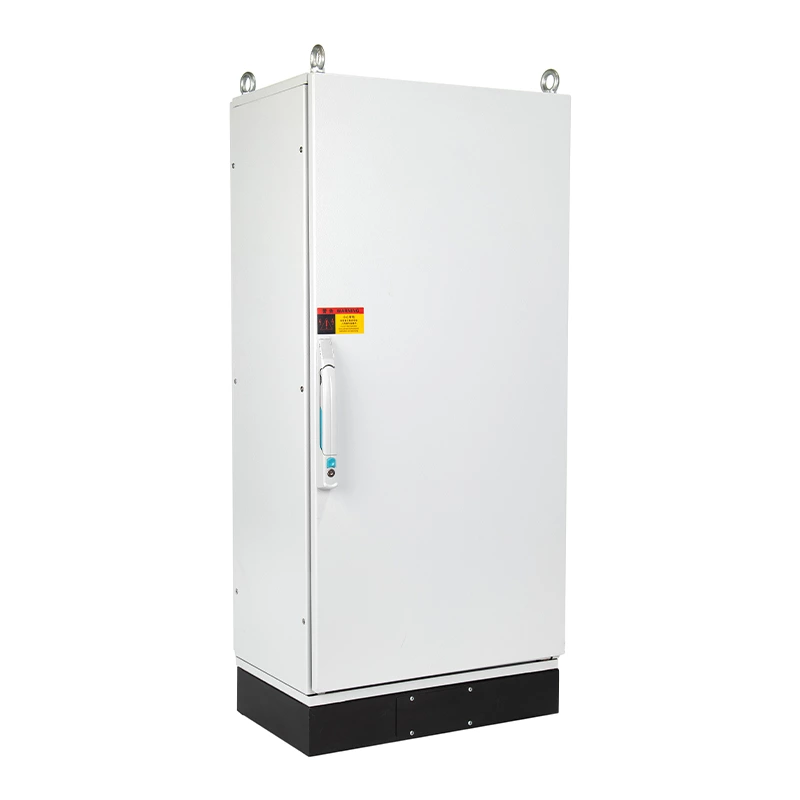

PS Cabinet/ES Cabinet electrical enclosure
- Brand:
- GOODE
- Material:
- Cold-rolled steel sheet
- Surface treatment:
- Thermosetting powder coating
- Color:
- RAL7035 or RAL7032 or RAL2000
- Installation method:
- Floor-standing
- Certification:
- ISO9001 , CE
- Protection degree:
- IP65
- Against mechanical impacts:
- IK09
- Working Voltage:
- 110V , 220V , 380V
- Customize:
- Available, OEM , ODM
About this item

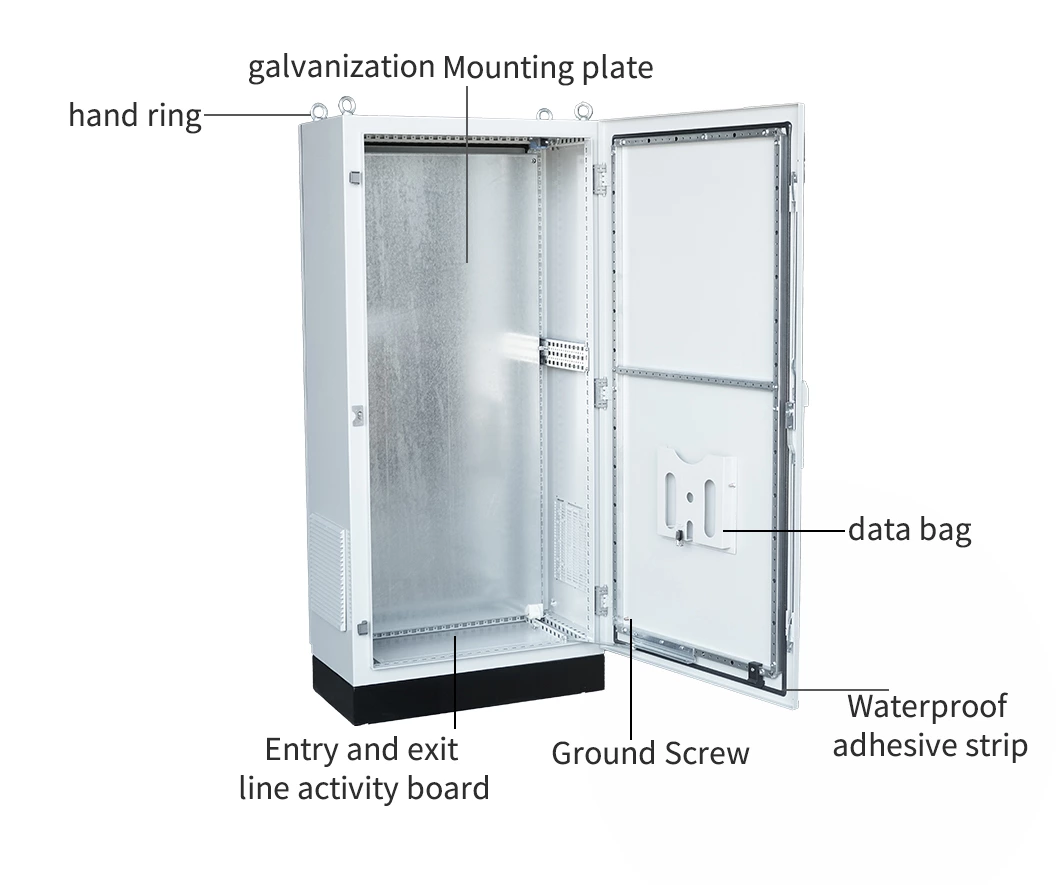

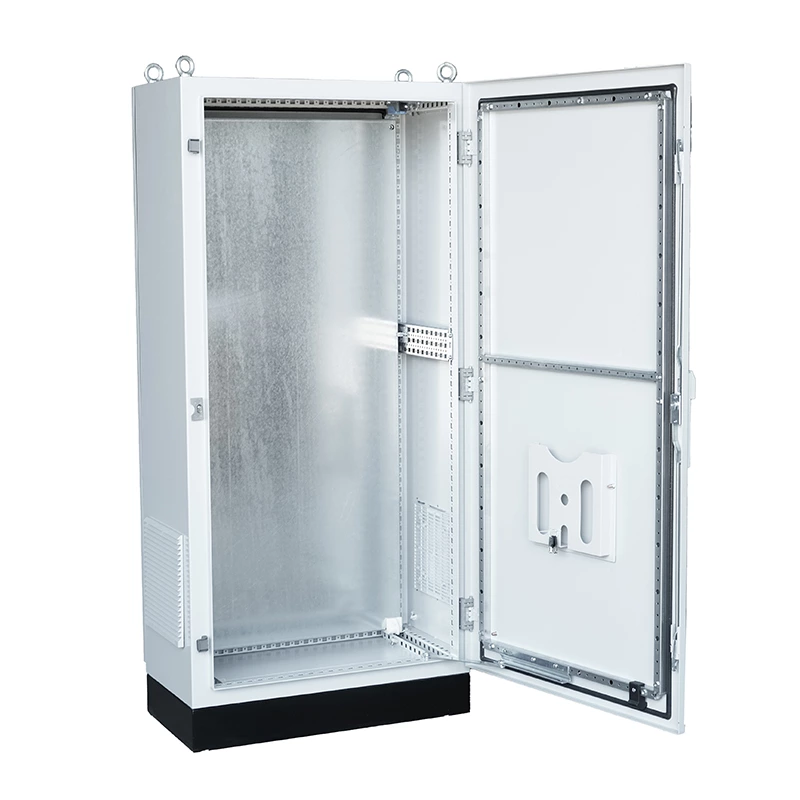

● ES Cabinet (Five-fold Bending Cabinet) is formed through integrated bending and welding of cold-rolled steel plates, offering an aesthetic appearance, sturdiness, reliability, and strong load-bearing capacity. Its sheet metal structure and accessory configuration are rationally and scientifically designed. The internal structure supports modular installation and flexible disassembly. The door panel PU sealing strip is cast in one go by a casting machine, providing dust and water resistance with a protection rating of IP54.
● PS Cabinet (Nine-fold Profile Cabinet) features an internal nine-fold profile frame structure, assembled with connectors or welding. The side panels, top and bottom plates, as well as the front and rear doors, are all detachable. It can be used independently or multiple units can be combined to flexibly expand the usage space.
| Order number | Width | Height | Depth | Base 1 | Base 2 |
| GD-ES6011040 | 600 | 1100 | 400 | 100 | 200 |
| GD-ES6014040 | 600 | 1400 | 400 | 100 | 200 |
| GD-ES7014040 | 700 | 1400 | 400 | 100 | 200 |
| GD-ES7016040 | 700 | 1600 | 400 | 100 | 200 |
| GD-ES8017040 | 800 | 1700 | 400 | 100 | 200 |
| GD-ES8017060 | 800 | 1700 | 600 | 100 | 200 |
| GD-ES8019060 | 800 | 1900 | 600 | 100 | 200 |
| GD-PS8018060 | 800 | 1800 | 600 | 100 | 200 |
| GD-PS10018060 | 1000 | 1800 | 600 | 100 | 200 |
| GD-PS12018060 | 1200 | 1800 | 600 | 100 | 200 |
| GD-PS8020060 | 800 | 2000 | 600 | 100 | 200 |
| GD-PS10020060 | 1000 | 2000 | 600 | 100 | 200 |
| GD-PS12020060 | 1200 | 2000 | 600 | 100 | 200 |
