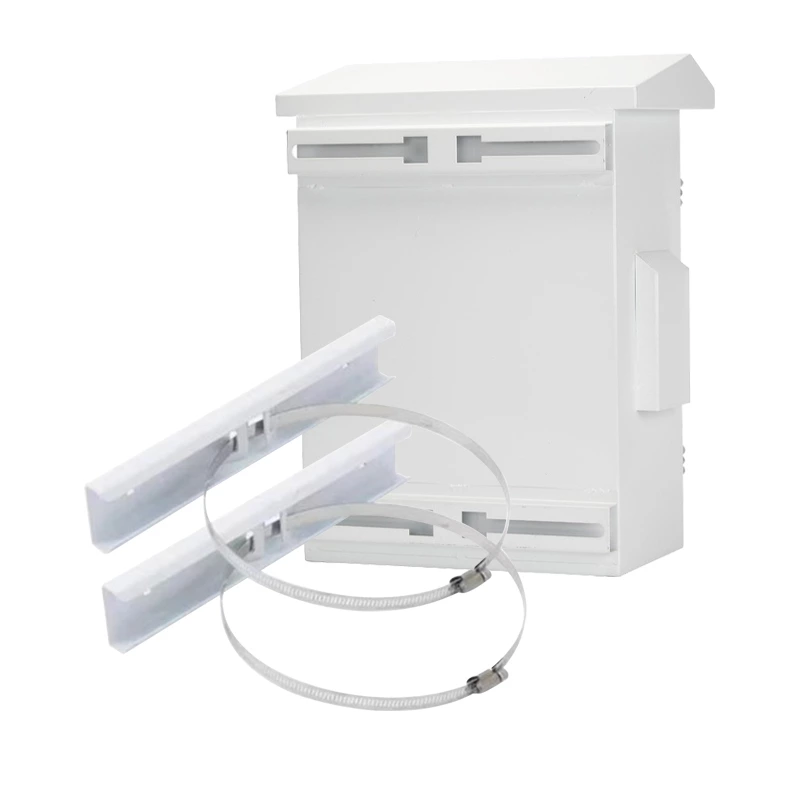

Outdoor Monitoring Box with Mounting Holes
- Brand:
- GOODE
- Material:
- Cold-rolled steel sheet
- Surface treatment:
- Thermosetting powder coating
- Color:
- RAL7035 or RAL7032 or RAL2000
- Installation method:
- Wall-mounted or Pole-mounted
- Certification:
- ISO9001 , CE
- Protection degree:
- IP65
- Against mechanical impacts:
- IK09
- Working Voltage:
- 110V , 220V , 380V
- Customize:
- Available, OEM , ODM
About this item
● Monitoring Cabinet is formed by bending and welding cold-rolled steel plates, featuring a double-sloped roof design. The interior can be equipped with mounting panels and shelves. The door panel PU sealing strip is cast in one go by a casting machine, preventing the infiltration of dust and rainwater. The cabinet base is equipped with cable outlets, and the door opens over 110 degrees with smooth rotation. Wall-mounted and pole-mounted installation options are available.
● It is widely used in transportation, residential areas, schools, hospitals, factories, shopping malls, and other locations, providing power supply and centralized management for monitoring equipment, 5G base stations, and data forwarding points.
| Order number | Width | Height | Depth |
| GD-JK405020 | 400 | 500 | 200 |
| GD-JK405025 | 400 | 500 | 250 |
| GD-JK406025 | 400 | 600 | 250 |
| GD-JK406030 | 400 | 600 | 300 |
| GD-JK506025 | 500 | 600 | 250 |
| GD-JK506030 | 500 | 600 | 300 |
| GD-JK608025 | 600 | 800 | 250 |
| GD-JK608030 | 600 | 800 | 300 |
