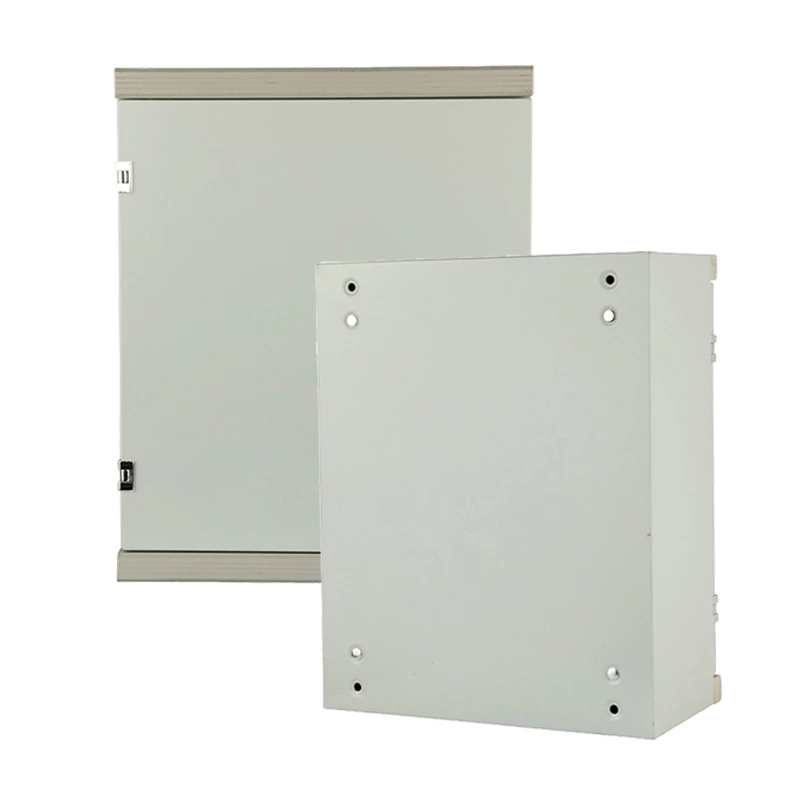

Electrical Box with Knockouts on All Sides
- Brand:
- GOODE
- Material:
- Cold-rolled steel sheet
- Surface treatment:
- Thermosetting powder coating
- Color:
- RAL7035 or RAL7032 or RAL2000
- Installation method:
- Wall-mounted
- Certification:
- ISO9001 , CE
- Protection degree:
- IP65
- Against mechanical impacts:
- IK09
- Working Voltage:
- 110V , 220V , 380V
- Customize:
- Available, OEM , ODM
About this item
● The steel enclosure box is formed by bending and welding cold-rolled steel plates, with its surface treated by epoxy resin electrostatic spraying, making it aesthetic and durable.
● The door panel PU sealing strip is cast in one go by a casting machine to prevent the infiltration of dust and rainwater
● The bottom of the cabinet is equipped with cable outlets, which come with removable cover plates and sealing strips, achieving a protection level of IP55.
● The cabinet is equipped with a removable mounting plate for installing various electrical equipment. The door opens over 110 degrees with smooth rotation
| Order number | Width | Height | Depth |
| GD-HJX253015 | 250 | 300 | 150 |
| GD-HJX304015 | 300 | 400 | 150 |
| GD-HJX304020 | 300 | 400 | 200 |
| GD-HJX405015 | 400 | 500 | 150 |
| GD-HJX405020 | 400 | 500 | 200 |
| GD-HJX405025 | 400 | 500 | 250 |
| GD-HJX405030 | 400 | 500 | 300 |
| GD-HJX406020 | 400 | 600 | 200 |
| GD-HJX406025 | 400 | 600 | 250 |
| GD-HJX406030 | 400 | 600 | 300 |
| GD-HJX506015 | 500 | 600 | 150 |
| GD-HJX506020 | 500 | 600 | 200 |
| GD-HJX506025 | 500 | 600 | 250 |
| GD-HJX506030 | 500 | 600 | 300 |
| GD-HJX507020 | 500 | 700 | 200 |
| GD-HJX507025 | 500 | 700 | 250 |
| GD-HJX507030 | 500 | 700 | 300 |
| GD-HJX508020 | 500 | 800 | 200 |
| GD-HJX508025 | 500 | 800 | 250 |
| GD-HJX606020 | 600 | 600 | 200 |
| GD-HJX606025 | 600 | 600 | 250 |
| GD-HJX607020 | 600 | 700 | 200 |
| GD-HJX607025 | 600 | 700 | 250 |
| GD-HJX607030 | 600 | 700 | 300 |
| GD-HJX608020 | 600 | 800 | 200 |
| GD-HJX608025 | 600 | 800 | 250 |
| GD-HJX608030 | 600 | 800 | 300 |
| GD-HJX609020 | 600 | 900 | 200 |
| GD-HJX609025 | 600 | 900 | 250 |
| GD-HJX609030 | 600 | 900 | 300 |
| GD-HJX709020 | 700 | 900 | 200 |
| GD-HJX709025 | 700 | 900 | 250 |
| GD-HJX709030 | 700 | 900 | 300 |
| GD-HJX6010020 | 600 | 1000 | 200 |
| GD-HJX6010025 | 600 | 1000 | 250 |
| GD-HJX6010030 | 600 | 1000 | 300 |
| GD-HJX7010020 | 700 | 1000 | 200 |
| GD-HJX7010025 | 700 | 1000 | 250 |
| GD-HJX7010030 | 700 | 1000 | 300 |
| GD-HJX8010020 | 800 | 1000 | 200 |
| GD-HJX8010025 | 800 | 1000 | 250 |
| GD-HJX8010030 | 800 | 1000 | 300 |
| GD-HJX10012020 | 1000 | 1200 | 200 |
| GD-HJX10012025 | 1000 | 1200 | 250 |
| GD-HJX10012030 | 1000 | 1200 | 300 |
