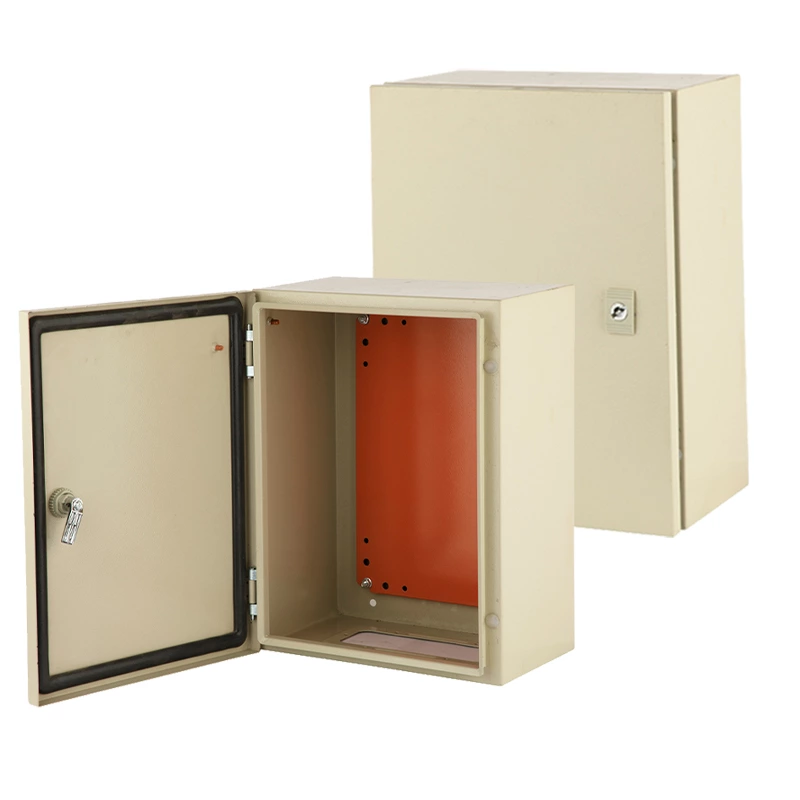

Electrical Enclosure for EV Charging Stations
- Brand:
- GOODE
- Material:
- Cold-rolled steel sheet
- Surface treatment:
- Thermosetting powder coating
- Color:
- RAL7035 or RAL7032 or RAL2000
- Installation method:
- Wall-mounted
- Certification:
- ISO9001 , CE
- Protection degree:
- IP65
- Against mechanical impacts:
- IK09
- Working Voltage:
- 110V , 220V , 380V
- Customize:
- Available, OEM , ODM
About this item
●The steel enclosure box is formed by bending and welding cold-rolled steel plates, with its surface treated by epoxy resin electrostatic spraying, making it aesthetic and durable.
●The door panel PU sealing strip is cast in one go by a casting machine to prevent the infiltration of dust and rainwater
●The bottom of the cabinet is equipped with cable outlets, which come with removable cover plates and sealing strips, achieving a protection level of IP55.
●The cabinet is equipped with a removable mounting plate for installing various electrical equipment. The door opens over 110 degrees with smooth rotation
| Order number | Width | Height | Depth |
| GD-JX253015 | 250 | 300 | 150 |
| GD-JX304015 | 300 | 400 | 150 |
| GD-JX304020 | 300 | 400 | 200 |
| GD-JX405015 | 400 | 500 | 150 |
| GD-JX405020 | 400 | 500 | 200 |
| GD-JX405025 | 400 | 500 | 250 |
| GD-JX405030 | 400 | 500 | 300 |
| GD-JX406020 | 400 | 600 | 200 |
| GD-JX406025 | 400 | 600 | 250 |
| GD-JX406030 | 400 | 600 | 300 |
| GD-JX506015 | 500 | 600 | 150 |
| GD-JX506020 | 500 | 600 | 200 |
| GD-JX506025 | 500 | 600 | 250 |
| GD-JX506030 | 500 | 600 | 300 |
| GD-JX507020 | 500 | 700 | 200 |
| GD-JX507025 | 500 | 700 | 250 |
| GD-JX507030 | 500 | 700 | 300 |
| GD-JX508020 | 500 | 800 | 200 |
| GD-JX508025 | 500 | 800 | 250 |
| GD-JX606020 | 600 | 600 | 200 |
| GD-JX606025 | 600 | 600 | 250 |
| GD-JX607020 | 600 | 700 | 200 |
| GD-JX607025 | 600 | 700 | 250 |
| GD-JX607030 | 600 | 700 | 300 |
| GD-JX608020 | 600 | 800 | 200 |
| GD-JX608025 | 600 | 800 | 250 |
| GD-JX608030 | 600 | 800 | 300 |
| GD-JX609020 | 600 | 900 | 200 |
| GD-JX609025 | 600 | 900 | 250 |
| GD-JX609030 | 600 | 900 | 300 |
| GD-JX709020 | 700 | 900 | 200 |
| GD-JX709025 | 700 | 900 | 250 |
| GD-JX709030 | 700 | 900 | 300 |
| GD-JX6010020 | 600 | 1000 | 200 |
| GD-JX6010025 | 600 | 1000 | 250 |
| GD-JX6010030 | 600 | 1000 | 300 |
| GD-JX7010020 | 700 | 1000 | 200 |
| GD-JX7010025 | 700 | 1000 | 250 |
| GD-JX7010030 | 700 | 1000 | 300 |
| GD-JX8010020 | 800 | 1000 | 200 |
| GD-JX8010025 | 800 | 1000 | 250 |
| GD-JX8010030 | 800 | 1000 | 300 |
| GD-JX10012020 | 1000 | 1200 | 200 |
| GD-JX10012025 | 1000 | 1200 | 250 |
| GD-JX10012030 | 1000 | 1200 | 300 |
